Please Carefully check the Size of the Rods in Specific and Description

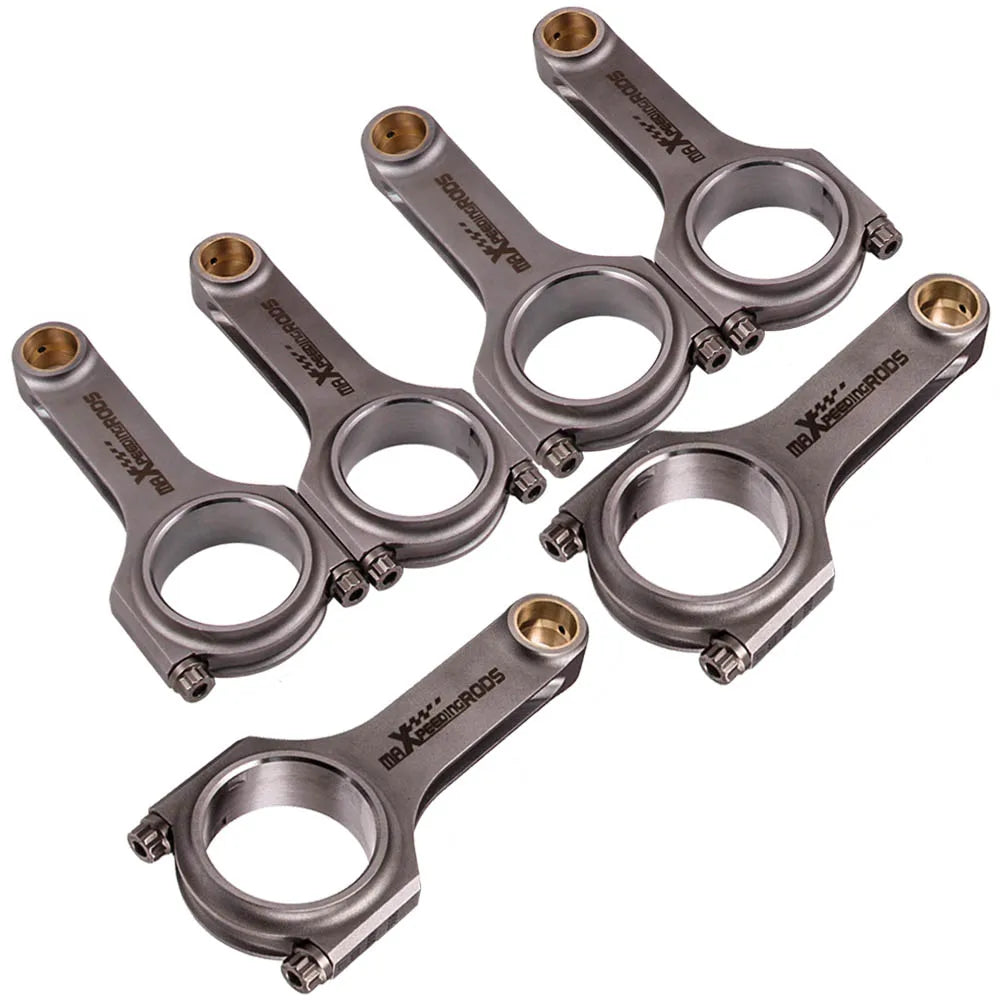

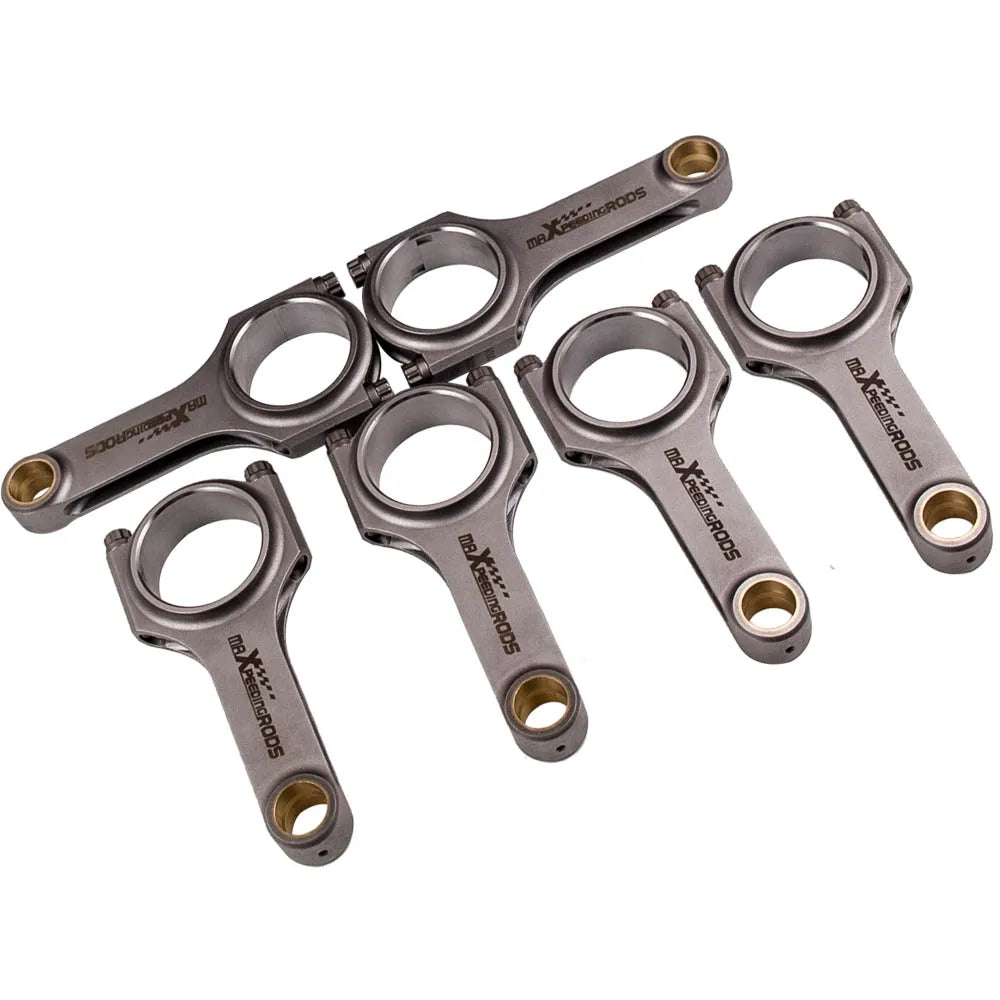

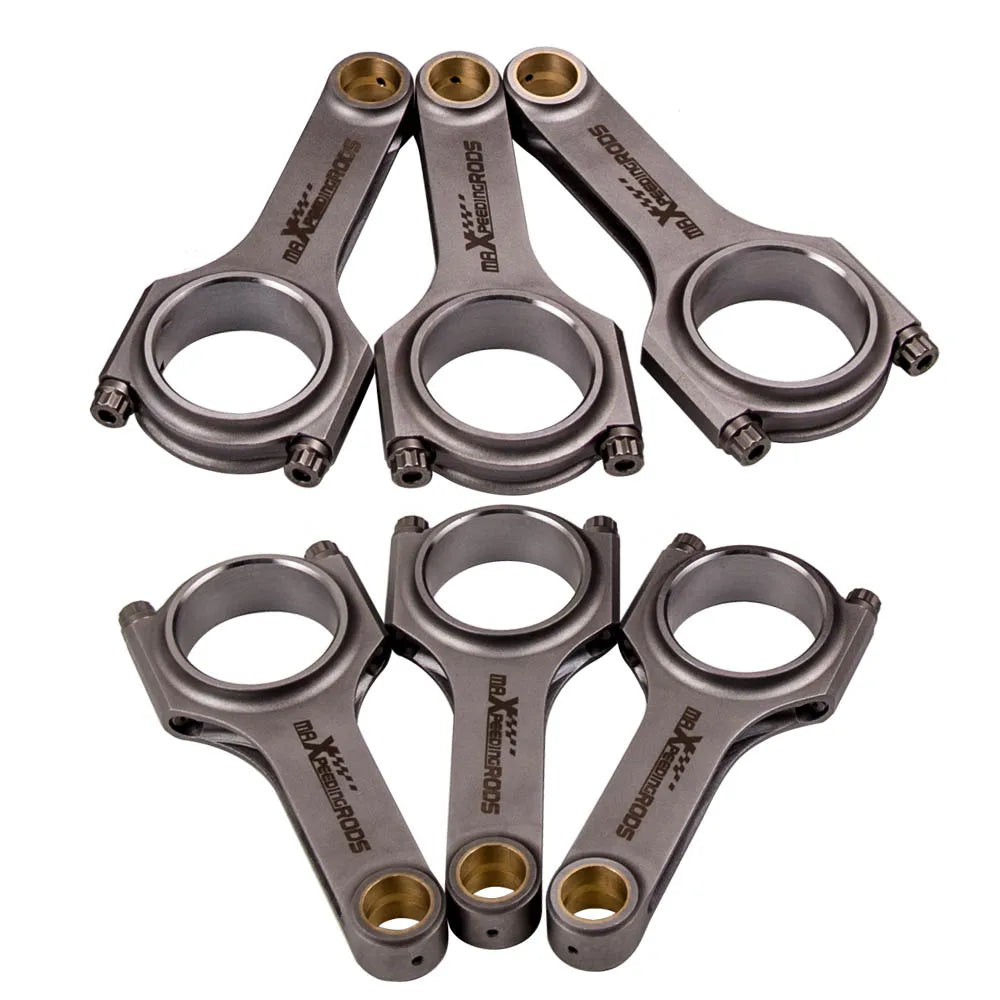

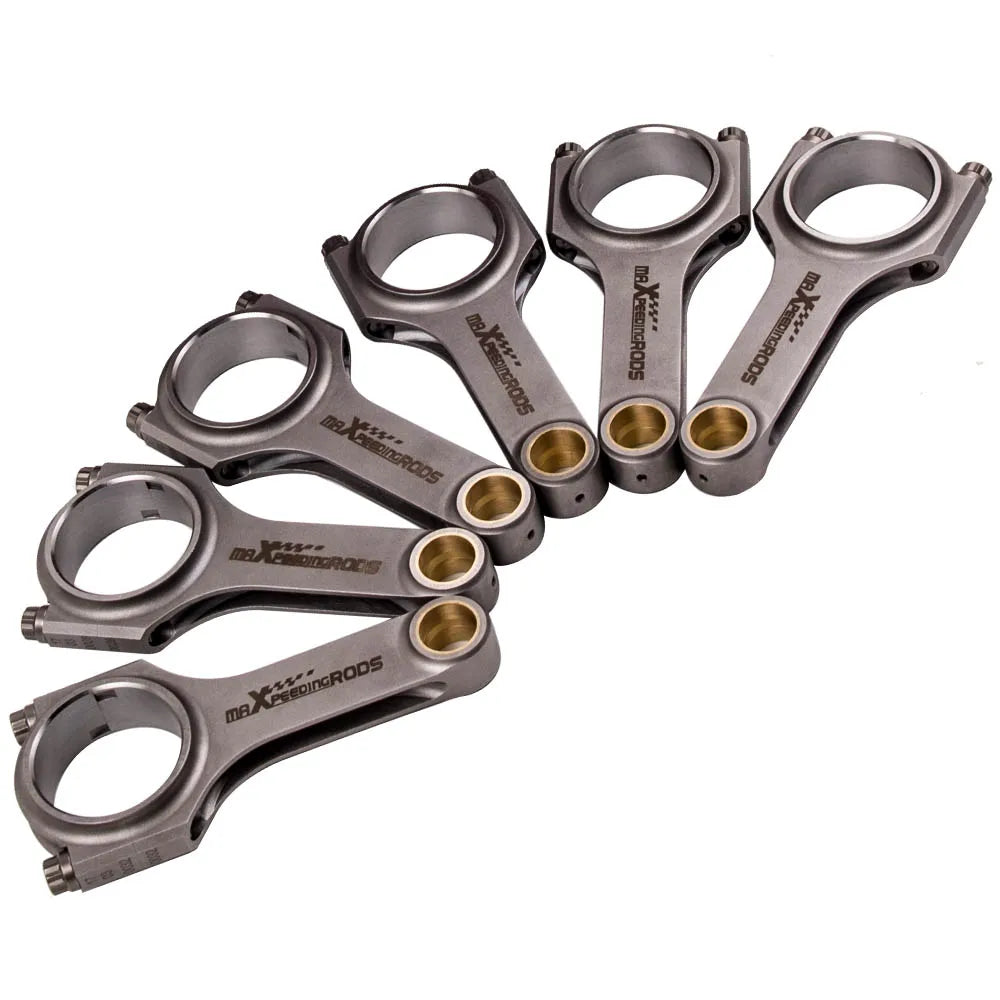

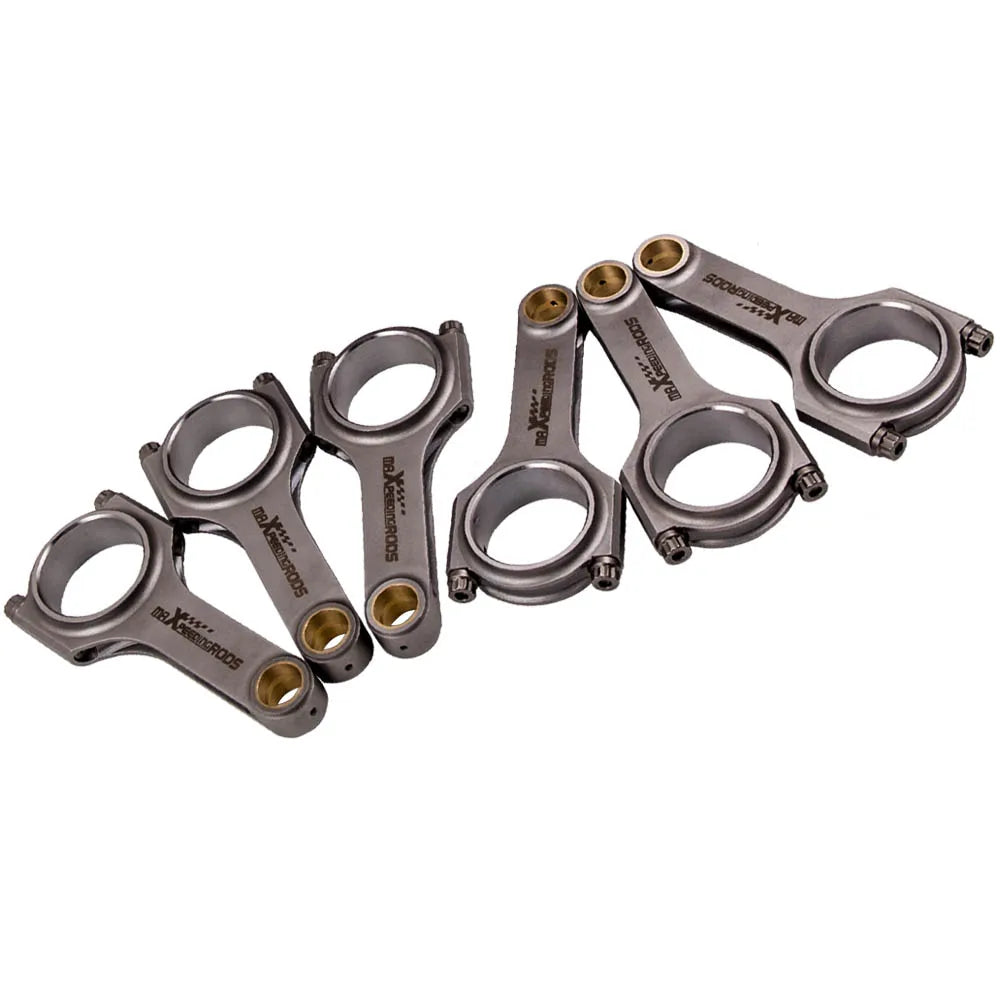

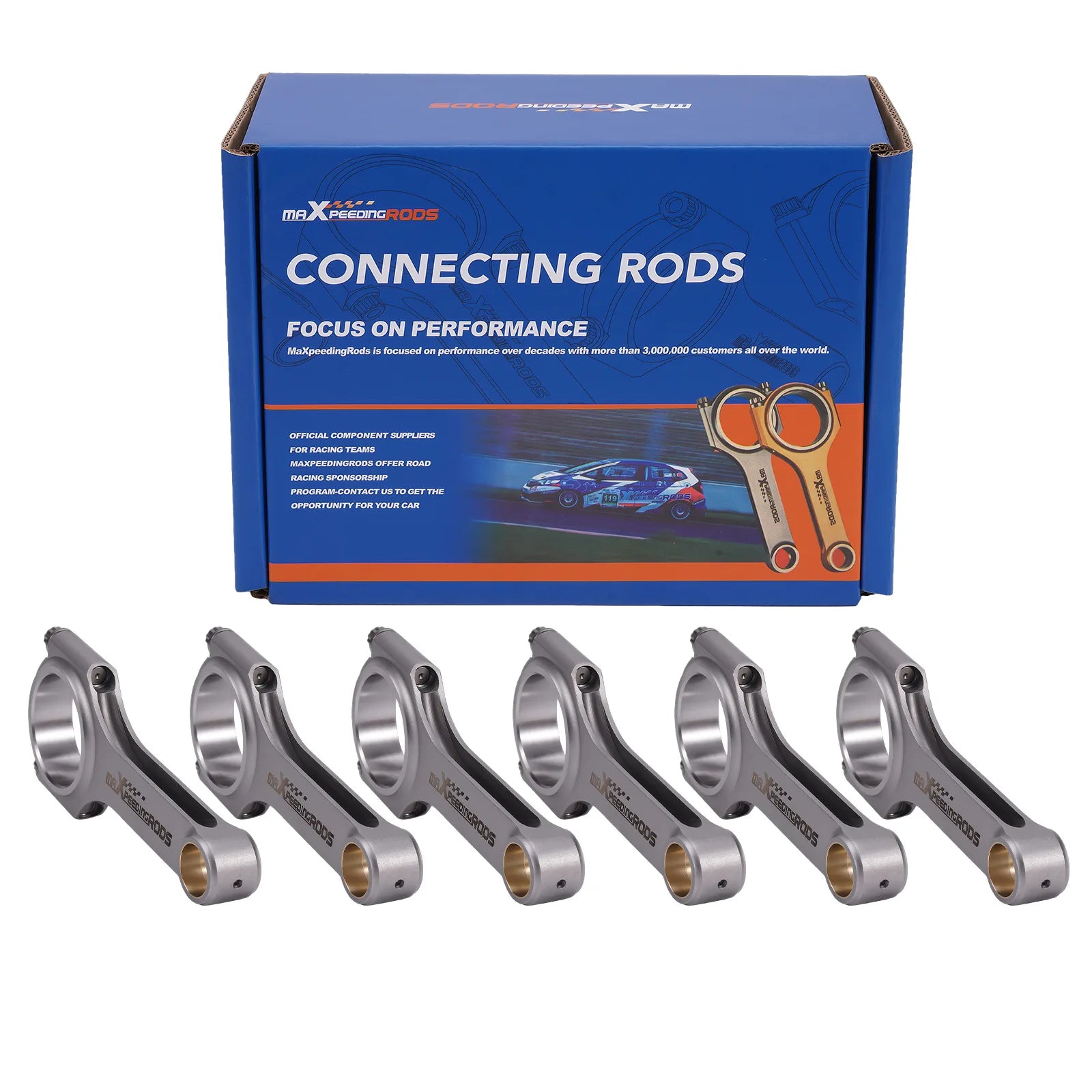

6PCS Steel H-Beam Connecting Rods +Bolts For BMW 328i 528i E36 E46 M52B28

Introduction

MaXpeedingRods H-beam connecting rods are designed for demanding racing applications to increase horsepower and efficiency. The strength is suitable for high-horsepower applications while keeping the weight light. Professional processing makes it have super high wear resistance and excellent durability.

Application

For BMW 328i 528i E36 E46 M52B28

Fitment Details:

For BMW 3 Series E36 1990-2000 325i 328i

For BMW 3 Series E46 1998-2007 325i 328i 330i 325 Ci 328 Ci 330 Ci 325 xi 328 xi 330 xi

For BMW 5 Series E12 1972-1981 Saloon 528i

For BMW 7 Series E38 1994-2001 Saloon 728i X 728i, iL

For BMW Z3 E36 1997-2003 Coupe 2.8i

For BMW Z3 Roadster E36 1995-2003 Convertible 2.8i

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

*H-beam Conrods Quantity: 6 Pieces as showing in picture

*Bolts: Including Genuine ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)

*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

*Advertised Horsepower Rating:200HP/piece

*Top acceleration: 9000rpm

*package size：28CM*21CM*14CM

Dimensions

Center to center length: 135mm/5.315"

Big end diameter: 48mm/1.89"

Small end diameter: 22mm/0.866"

Big end width: 21.9mm/0.862"

Small end width: 21.9mm/0.862"

Features:

1. TüV Certification Con Rods；

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；

3. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

4. H-Beam design reduces weight without compromising strength；

5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；

6 CNC machined,Precision rod cap alignment dowels；

7.Bores finished to +/- .01 mm；

8.Balanced to within +/- 1 g per rod；

9. Each rod is magnetic particle tested to ensure free of flaws；

10 X-rayed, sonic tested；

11.Custom Service.

Important note:

*There are titanium-plated upgrade models；

*Professional installation is highly recommended ；

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
